DIN 5685-2 CHAIN (07.2003)

Finish

Self-colour, Polished, Ø 2 ÷ 3,5 Brass-plated, Electrogalvanised, Ø 5 ÷ 13: Hot dip galvanised

Field of application

Codice

Code

Filo diametro

Diameter wire

Passo

Pitch

Larghezza

Width

Peso per
metro lineare

Weight per meter

Carico di lavoro statico

Working load

Massimo diametro saldatura

Maximum diameter of weld

Matasse da

Bundles of

mm

mm

mm

kg/mt

kg

mm

mt

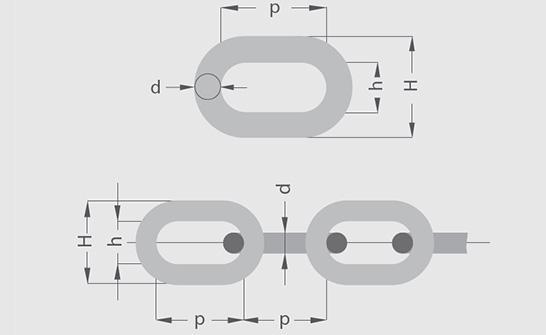

d

±

p

±

Interna
min. h

Inside
min. h

CTG2020A34

2,0

0,10

12,0

0,60

3,5

0,07

20

2,20

50

CTG2025A34

2,5

0,10

14,0

0,70

4,5

0,11

30

2,75

50

CTG2030A34

3,0

0,20

16,0

0,80

5,5

0,17

40

3,30

50

CTG2035A34

3,5

0,20

18,0

2,00

6,0

0,23

60

3,85

50

CTG2040A34

4,0

0,20

19,0

2,00

7,0

0,30

80

4,40

50

CTG2050A34

5,0

0,30

21,0

2,00

9,0

0,50

125

5,50

50

CTG2060A34

6,0

0,30

24,0

1,20

11,0

0,73

160

6,60

50

CTG2070A34

7,0

0,40

28,0

1,40

12,0

0,99

220

7,70

50

CTG2080A34

8,0

0,40

32,0

1,60

14,0

1,30

320

8,80

25

CTG2100A34

10,0

0,50

40,0

2,00

18,0

2,00

500

11,00

25

CTG2130A34

13,0

0,70

52,0

2,60

23,0

3,40

800

14,30

25
